Variflow Dosing Metering Diaphragm Pumps - Z Series

Description

The Variflow Dosing Metering Diaphragm Pumps - Z Series is from 0 - 14000 LPH giving a maximum pressure of 10 Bar depending upon the flow rate.These pumps are provided with high efficiency ball valves & high grade of engineering materials for the wetted parts, which enables wide range of aggressive, toxic, hazardous liquid to be handled.

These Pumps are available in Single Diaphragm, Double Diaphragm, Sandwich Type with Rupture Detection with Multi Heads upto 3 heads.

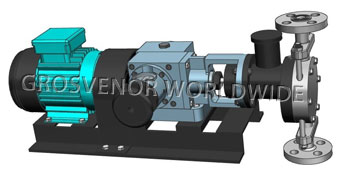

variflow-dosing-metering-pumps-zseries

Kindly note : Z Series - Diaphragm Pumps can handle pressure upto 11 kg/bar max.

Technical Details

CAPACITY : MAX - 14000 LPH
PRESSURE : MAX - 10 BAR
MOC : SS 304 / SS 316 / SS 316 L / POLYPROPYLENE - PP/ TEFLON - PTFE
or any other as per required.
MOTOR POWER : 0.5 HP - 15 HP, RPM : 1450
MOTOR TYPE : STANDARD / FLAME PROOF / VFD COMPATIBLE / ENERGY EFFICIENT
or any other as per required.
MOTOR POWER : SINGLE PHASE / THREE PHASE, 50 HZ / 60 HZ, 230 V / 380 V / 415 V
or any other as per required.
APPLICATION : DOSING / METERING / INJECTION / MIXING / FEEDING / SAMPLING



PRODUCT CHART - Z SERIES

PUMP MODEL CAPACITY LPH PRESS. KG./CM2 END CONNECT MOTOR
1450
RPM
75 SPM
100 SPM
150 SPM
200 SPM
Z - A 4.5 6 9 12 30 1/2" 0.5 HP
STROKE 11 18 27 40 20
LENGTH 22 33 50 68 10
10 MM 30 44 70 100 5
40 75 115 160 4
Z - B 3 4.5 6 - 300 1" 1 HP
STROKE 18 28 43 - 80
LENGTH 70 95 155 - 20
20 MM 160 215 325 - 10
310 420 610 - 4
Z - C 11 14 22 - 300 1 ½" 2 HP
STROKE 43 56 90 - 80
LENGTH 130 174 260 - 25
30 MM 385 511 775 - 10
770 1026 1550 - 5
Z - D 20 30 40 - 300 2" 3 HP
STROKE 90 120 180 - 75
LENGTH 800 1063 1594 - 20
40 MM 1500 2000 3000 - 5
50 65 100 - 300
Z - F 200 225 395 - 75 2" 5 HP
STROKE 800 1050 1584 - 20
LENGTH 1725 2300 3450 - 10
60 MM 3100 5000 6200 - 5
200 266 400 - 300
Z I 1550 1550 2300 - 50 3" 12 HP
STROKE 2580 3500 5200 - 25
LENGTH 4650 6200 9200 - 13
90 MM 7250 9700 14000 - 7


*** Our policy is to continually develop and improve our products and we therefore reserve the right to modify pumps without any notice.
