Variflow Dosing Metering Plunger Pumps - Z Series

Description

The Variflow Dosing Metering Plunger Pumps - Z series is from 0 - 14000 LPH giving a maximum pressure of 300 Bar depending upon the flow rate.These pumps are provided with high efficiency ball valves & high grade of engineering materials for the wetted parts, which enables wide range of aggressive, toxic, hazardous liquid to be handled.

These pumps are available in multi heads upto 3 heads. The pump head are manufactured from Stainless Steel Material.

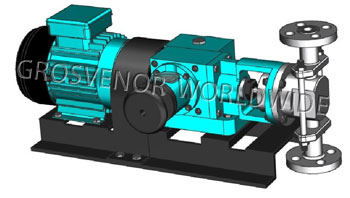

variflow-dosing-metering-plunger-pumps-zseries

Technical Details

CAPACITY : MAX - 14000 LPH
PRESSURE : MAX - 300 BAR
MOC : SS 304 / SS 316 / SS 316 L
or any other as per required.
MOTOR POWER : 0.5 HP - 15 HP, RPM : 1450
MOTOR TYPE : STANDARD / FLAME PROOF / VFD COMPATIBLE / ENERGY EFFICIENT
or any other as per required.
MOTOR POWER : SINGLE PHASE / THREE PHASE, 50 HZ / 60 HZ, 230 V / 380 V / 415 V
or any other as per required.
APPLICATION : DOSING / METERING / INJECTION / MIXING / FEEDING / SAMPLING



PRODUCT CHART - Z SERIES

PUMP MODEL CAPACITY LPH PRESS. KG./CM2 END CONNECT MOTOR
1450
RPM
75 SPM
100 SPM
150 SPM
200 SPM
Z - A 4.5 6 9 12 30 1/2" 0.5 HP
STROKE 11 18 27 40 20
LENGTH 22 33 50 68 10
10 MM 30 44 70 100 5
40 75 115 160 4
Z - B 3 4.5 6 - 300 1" 1 HP
STROKE 18 28 43 - 80
LENGTH 70 95 155 - 20
20 MM 160 215 325 - 10
310 420 610 - 4
Z - C 11 14 22 - 300 1 ½" 2 HP
STROKE 43 56 90 - 80
LENGTH 130 174 260 - 25
30 MM 385 511 775 - 10
770 1026 1550 - 5
Z - D 20 30 40 - 300 2" 3 HP
STROKE 90 120 180 - 75
LENGTH 800 1063 1594 - 20
40 MM 1500 2000 3000 - 5
50 65 100 - 300
Z - F 200 225 395 - 75 2" 5 HP
STROKE 800 1050 1584 - 20
LENGTH 1725 2300 3450 - 10
60 MM 3100 5000 6200 - 5
200 266 400 - 300
Z I 1550 1550 2300 - 50 3" 12 HP
STROKE 2580 3500 5200 - 25
LENGTH 4650 6200 9200 - 13
90 MM 7250 9700 14000 - 7


*** Our policy is to continually develop and improve our products and we therefore reserve the right to modify pumps without any notice.
